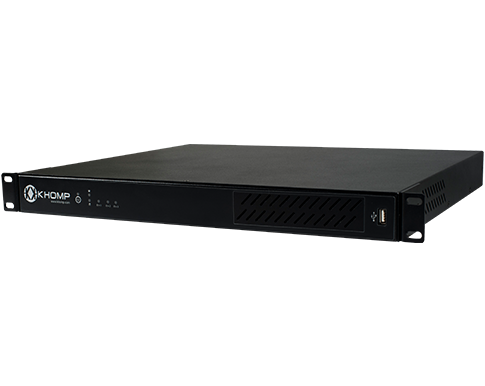

KMG 400 One

Modular Media Gateway for up to 480 calls with SBC

Description

The KMG 400 One is a medium density media gateway designed to meet the call-flow needs of the corporate market, carriers, Internet providers or contact centers that need to handle up to 480 simultaneous calls (TDM or VoIP). Its architecture comprises 1 internal Modular EBS and allows for the possibility of adding up to 7 external telephony modules, which can consist of E1/T1, GSM, FXO and/or FXS. Totaling up to 8 telephony modules.

Just as with the other models in the line, the KMG 400 also has advanced resources for call classification, local survivability, register authorization, support for SS7/SIGTRAN and SIP-I, high availability and intelligent monitoring of channels in real time.



Characteristics and benefits

Features are native in all KMG One models

  • Intuitive Web Interface for easier configuration, monitoring and diagnosis
  • Routing Script for the automation of routing functions
  • Data encryption in VoIP channels for network security
  • VoIP Bridge for any audio and video codec
  • Provisioning via TR-069
  • HA support
  • History and recovery of changes in configurations
  • Advanced CLI including reset of factory configurations
  • SIP-I Support



Optional features:

  • E1/T1 Bypass for the solution security
  • Insight!: for interactive monitoring and real-time data analysis
  • Analytics: Khomp call classifier to ensure the effectiveness of contact center productive calls
  • Manager One: Intelligence and centralized management of your operation
  • SBC For Routing: all advanced features for routing of SIP – SIP calls
  • Register Authorization
  • Survivability
  • SS7/SIGTRAN Signaling

*Features acquired with additional licenses.



Advantages of the KMG 400 One

  • Modularity with up to 1 internal modular EBS and up to 7 external modules, allowing for a great variety of modular solutions
  • 1U Server
  • Option with BNC or RJ45 connectors
  • Option for up to 8 additional external telephony modules for E1/T1, GSM 2G or 3G, FXO and/or FXS calls. Maximum of up to 480 simultaneous calls
  • Up to 240 calls in transcoding
  • R2 and ISDN Links
  • Supports SS7/SIGTRAN and SIP-I

Resources

Application Model

Application Model - KMG 400 One

Downloads

Access here the PDF file with information from KMG 400 One Datasheet
