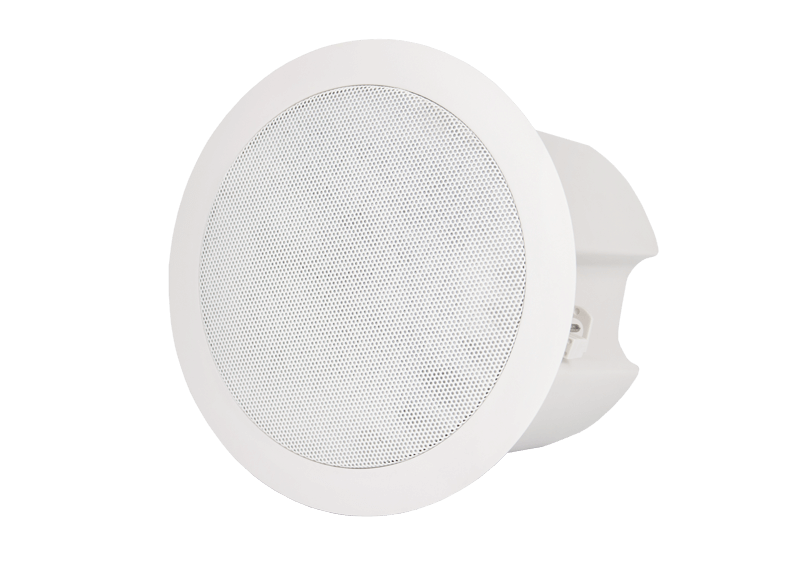

Speaker Wall 130 E

Sound lounge SIP speaker


The family of SIP Endpoints Khomp, the Speaker Wall was developed to integrate ad platforms, search for people, pagging information and intercom in general. Besides having the already known benefits of Khomp as robust and reliable hardware, the Speaker Wall E 130 is versatile and innovative features excellent audio quality and the possibility of integration with legacy platforms.

Supports up to 3 SIP accounts recorded simultaneously and up to 20 groups for multicast RTP, giving great possibility of operation, device groups or in isolation in the system. In addition to network supports DHCP / Static / PPPoE and other features such as VPN, VLAN, QoS and provisioning. The Speaker Wall also has a friendly web interface, easy to configure and ensure convenience of maintenance and monitoring of product performance.


Features and Benefits


  • Audio output with 13W of power and an audio input for microphone
  • Audio processing Full Duplex with AEC
  • Registration as IP PBX extension
  • Registration up to 3 SIP accounts simultaneously
  • Support for up to 20 groups for multicast RTP

Web interface

  • Configuration
  • System status
  • Diagnostic Module
  • For user interface access control


  • LED status indication
  • External configuration volume

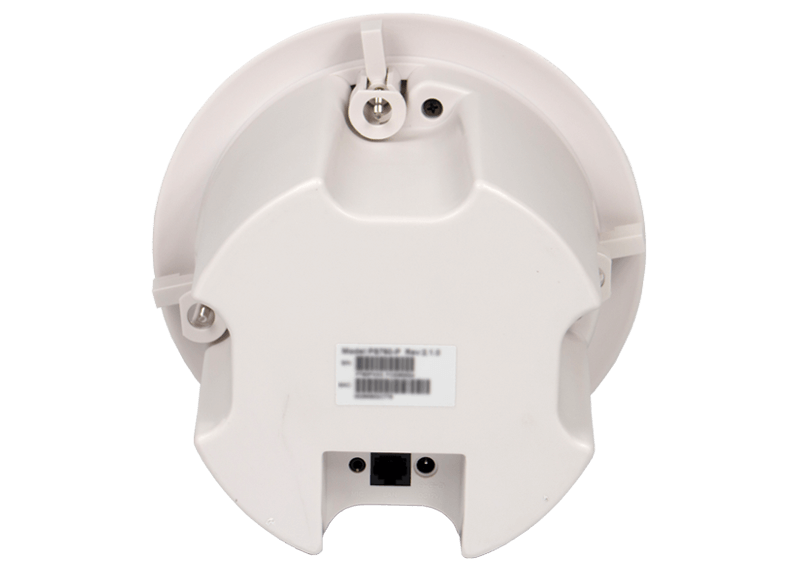

  • Interface 10/100 LAN, RJ45 connector
  • Power of the missing high: 13W
  • PoE (802.3af)
  • Power supply: 12V 1 * (not included)
  • Overall diameter: 212mm
  • Secondary diameter: 174mm
  • Overall Height: 160mm

Supported protocols and CODECs

  • V1 and V2 SIP (RFC 2543 and 3261)
  • DNS SRV (RFC 3263)
  • STUN
  • DTMF: In-band, RFC 2833 and SIP INFO
  • Network: Static, DHCP and PPPoE)
  • G.711u / A, G.729A, G.723.1, G.726, G.722 and iLBC


  • VLAN (802.1pq), LLDP, VPN, TLS and AES

Warranties and Certifications

  • Factory Warranty: 1 year
  • ISO 9001:2008 certified company



Download here the PDF file with information from Speaker Wall 130 E. Datasheet
