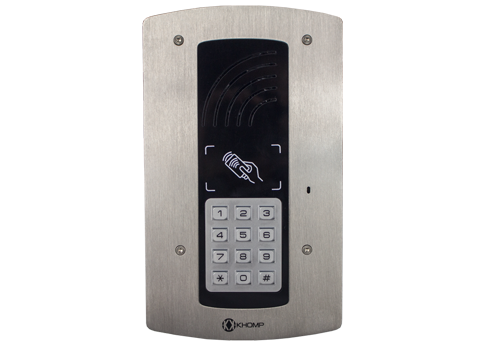

IP Wall – Series 300

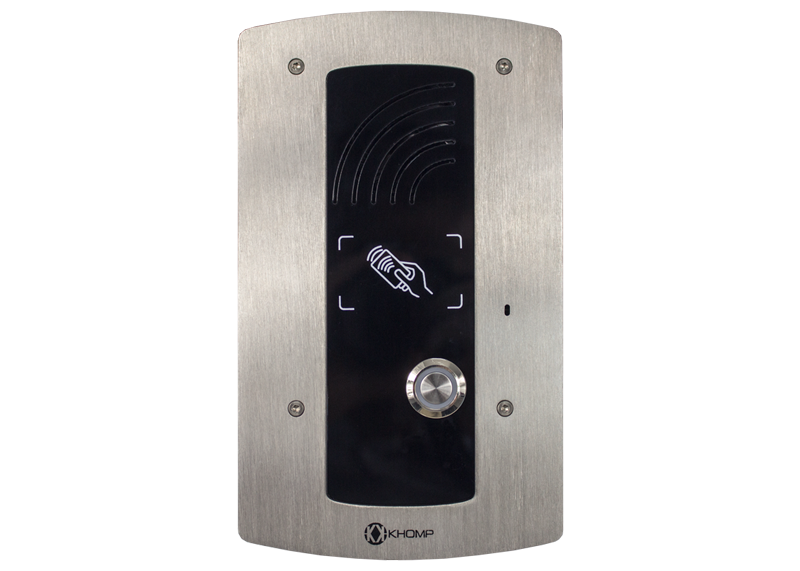

1 button, RFID, PoE option and video license

Description

The IP Wall is a line of panel IP communicators with onboard intelligence and efficient speakerphone that serves as an electronic intercom, as an intercommunicator in automation or security systems, and even as an access control point. The IP Wall products can also be used in homes, offices, multifamily systems in residential buildings or gated condominiums, schools, intercom totems, parking lot gates, hospitals and many other environments.

Connecting like an SIP extension of an IP PBX or directly to another remote IP device, the products of the IP Wall line can be installed in either a local or remote network. Configuration is done through a web server that is accessible with any standard browser.

With all of these options, the IP Wall is an important tool in a variety of scenarios involving integration via SIP, including a wide range of integration possibilities for IoT requisitions.



IP Wall series 300 optional resources:

  • Built-in camera: for SIP video calls
  • RFID reader: for simplified door opening operations by using tags or registered cards
  • PoE: power and network traffic on a single cable



Typical Applications

  • Integrated electronic intercom via VoIP
  • Wall IP communication device to allow talking via hand-free SIP calling
  • Automation for device control and actuation
  • Intercommunicator for security systems
  • Access control point for security systems



Characteristics

External cabinet

  • External mounting or built-in installation*
  • Brushed steel (standard)
  • Anti-vandal structure

*The built-in camera model is only available for external mounting.

Capabilities

  • Door opening by remote order by means of commands via DTMF or SIP Notify
  • 2 Wiegand communication interfaces for connection with RFID readers
  • 2 dry contact relays for access control, allowing access through any PBX extension
  • Separate volume controls for microphone and loudspeaker
  • LAN/PBX-IP SIP integration with internal WEB server for configuration
  • Stand-alone, SIP access control using SQL database
  • Video call support by using the built-in camera or external approved cameras (a video license is required)
  • Perfect integration with Asterisk®
  • Door opening sensor

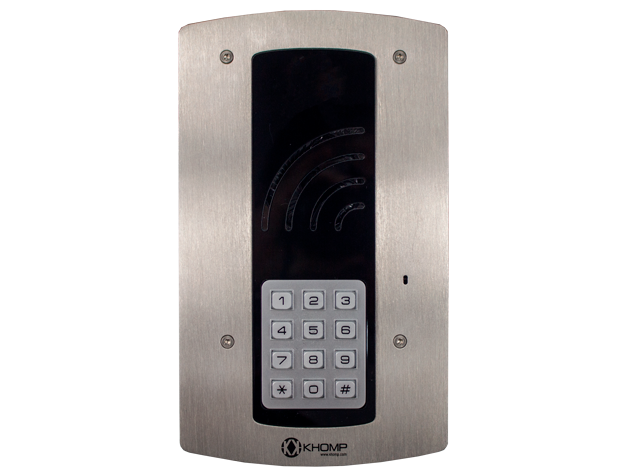

For installations with numeric keypad

  • Direct dialing allows for calling desired location or accessing special IP PBX resources
  • Programming of numeric passwords for access control



Optional Items

  • Standard H.264 video camera, 960p or 720p
  • Built-in RFID reader: 13.56Mhz or 125Khz (operating frequency)
  • Power over Ethernet (PoE)



Resources

Application model

IP Wall Series 300 application model



Downloads

Download here the PDF file with information from IP Wall - Series 300. Datasheet
Download here the PDF file with information from IP Wall - Series 300 with INTEGRATED CAMERA. Datasheet
