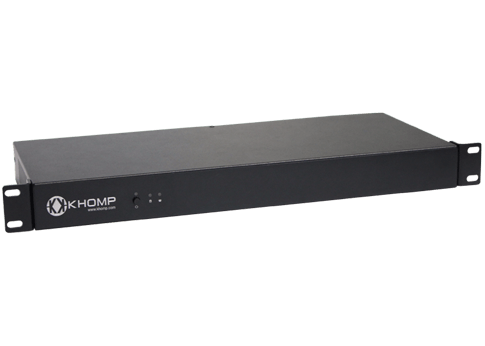

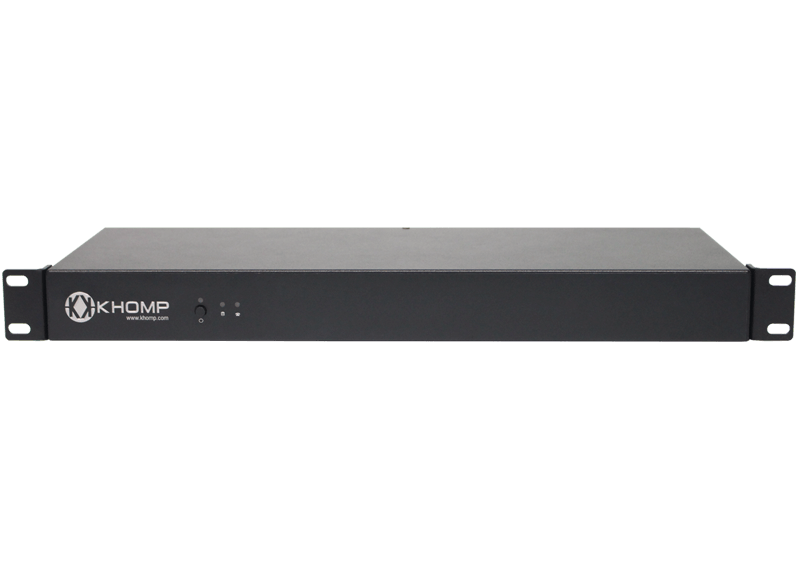

KMG 200 MS

Low density modular media gateway for up to 60 calls with SBC

Description

Low density gateway with up to 60 E1/T1, GSM 2G or 3G, FXO and/or FXS channels, and 60 SIP SBC calls with transcoding.

The KMG 200 MS is a low density E1/T1 media gateway developed for applications in the corporate market, for use by carriers and service providers seeking to integrate TDM and NGN networks or small-scale call centers, combining efficiency and high availability.

Its modular architecture allows for 1 or 2 E1 links inside the cabinet and it has an option for up to 2 additional external telephony modules for E1/T1, GSM 2G or 3G, FXO and/or FXS calls, with a maximum of 60 simultaneous calls.

Ideal for small call centers and VoIP carriers needing a low cost, easy-to-implement upgrade.



Features and beneficits

Features are native in all KMG MS models

  • Web Interface for easy configuration, monitoring and diagnostics;
  • Routing Script for routing functions automation;
  • RTP Brigde to allow for a larger number of simultaneous SIP calls;
  • Data Encryption to protect the VoIP network.

Optional Features for your solution*

  • SBC For Routing: all advanced SIP-SIP call routing features;
  • KMG Analytics: Khomp Call Classifier to ensure the effectiveness of the contact center productive calls;
  • Standalone Survivability (SAS): to survival mode in case of PBX failure;
  • SS7, ISUP e SIGTRAN support: for interconnection at the carrier core level;
  • Register Authorization: for prior authorization of requests to register external IP phones;
  • KMG Monitor: for interactive monitoring and real-time data analysis.

*Features to be purchased separately.



KMG 200 MS Features

  • Modular, with 1 or 2 E1/T1 links inside the cabinet
  • Option with BNC or RJ45 connectors
  • Option for up to 2 additional external telephony modules for GSM 2G or 3G, FXO and/or FXS calls. Maximum of up to 60 simultaneous calls.
  • R2 and ISDN links
  • Up to 60 SIP SBC calls with transcoding or up to 240 SIP to SIP calls in Bridge mode
  • R2 and ISDN Links



Resources

Comparative table of family KMG MS:

E1/T1, GSM, FXS and/or FXO capability  SBC   Telephony interfaces
Transcoding option Maximum Nº. of Channels Number of calls (Bridge Mode) * G.711 <> G.711 SIP Transcoding
G.729 <> G.711
Transcoding on Both Ends
G.729 <> G.729
Internal
(o
n the chassis)
External (additional modules)
KMG 200 MS G.711<>G.729 60 240 120 60 30 1 (1 or 2 E1/T1) 2
KMG 400 MS
G.711
G.711<>G.729
0
120
120
300
240
90
180
90
0
90
30
0
45
15
0
0
1 (modular)
1 (modular)
0
2
2
KMG SBC 750
KMG 3200 MS

G.711
G.711<>G.729
0
960
480
2010
450
1500
1500
450
450
750
300
300
375
150
150


0
8
8
KMG SBC 90
G.711<>G.729
0
60
300
240
180
120
90
60
45
30


2

*RTP Bridge: Does not allow conversion of Codecs or audio handling – Analytics.



Application Model

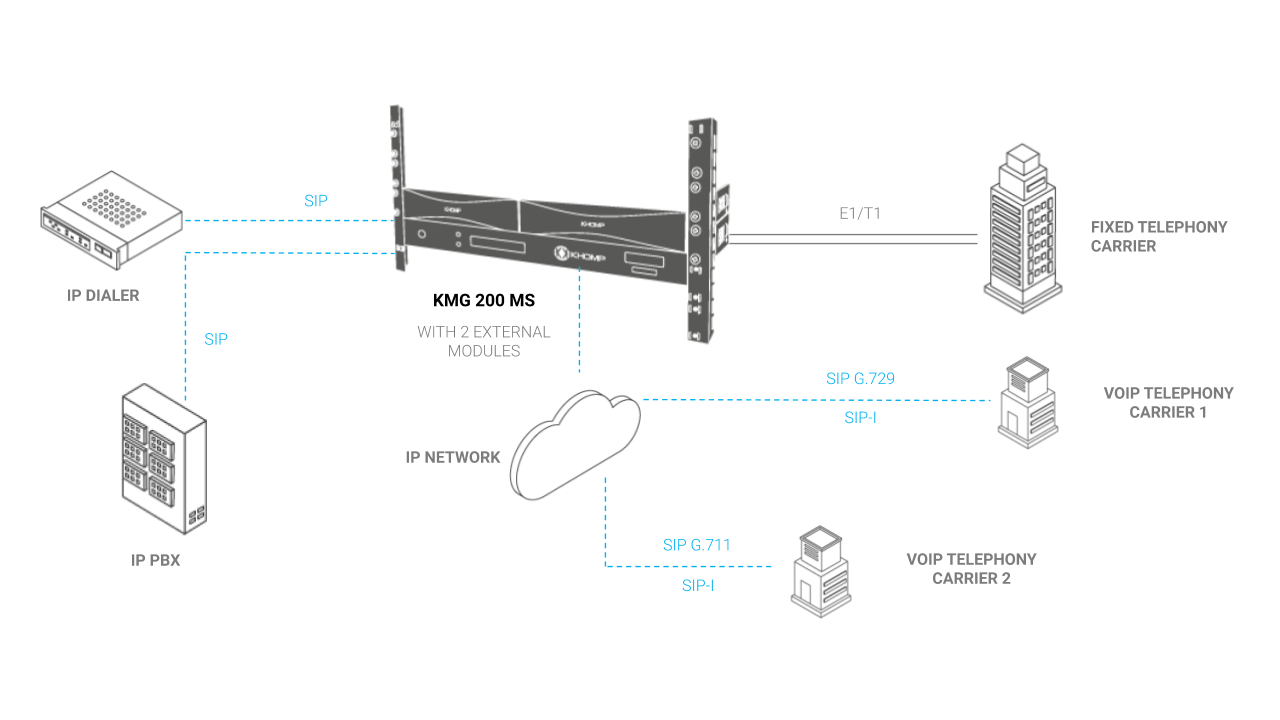

KMG 200 MS Application Model

KMG 200 MS Application Model



Downloads

Download here the PDF file with information from KMG 200 MS. Datasheet
